Manhole Boxes
Manhole Boxes for Sale
Iron Lot supplies manhole boxes and manhole trench shields for utility structure installation, maintenance hole work, pipe tie-ins, repair projects, and underground utility construction. Manhole boxes are commonly used when contractors need a four-sided trench shielding option around a structure, connection point, or repair area.
Contact Iron Lot for current availability, model options, spreader information, freight support, and a quote on the manhole box or manhole trench shield that fits your project.
Request Current Pricing and Availability
Request a Manhole Box Quote
Need a manhole box, manhole trench shield, spreaders, or related trench safety equipment? Send Iron Lot your project details and we can help review available options, current pricing, freight considerations, and quote support.
To help us quote the right manhole box, please include as much information as possible:
- Manhole, maintenance hole, tie-in, or repair application
- Trench depth, width, and length
- Pipe clearance needs, if known
- Job location or delivery ZIP code
- Required working area around the structure
- Quantity needed
- Project timeline
- Whether freight or delivery support is needed
Pricing is not listed on this page because availability, model, configuration, spreaders, accessories, and freight can vary. Contact Iron Lot for current pricing and quote support.
Manhole Box Quote Form
Submit the form below and Iron Lot will follow up about your manhole box needs.
Manhole Boxes for Utility Structures, Tie-Ins, and Repair Work

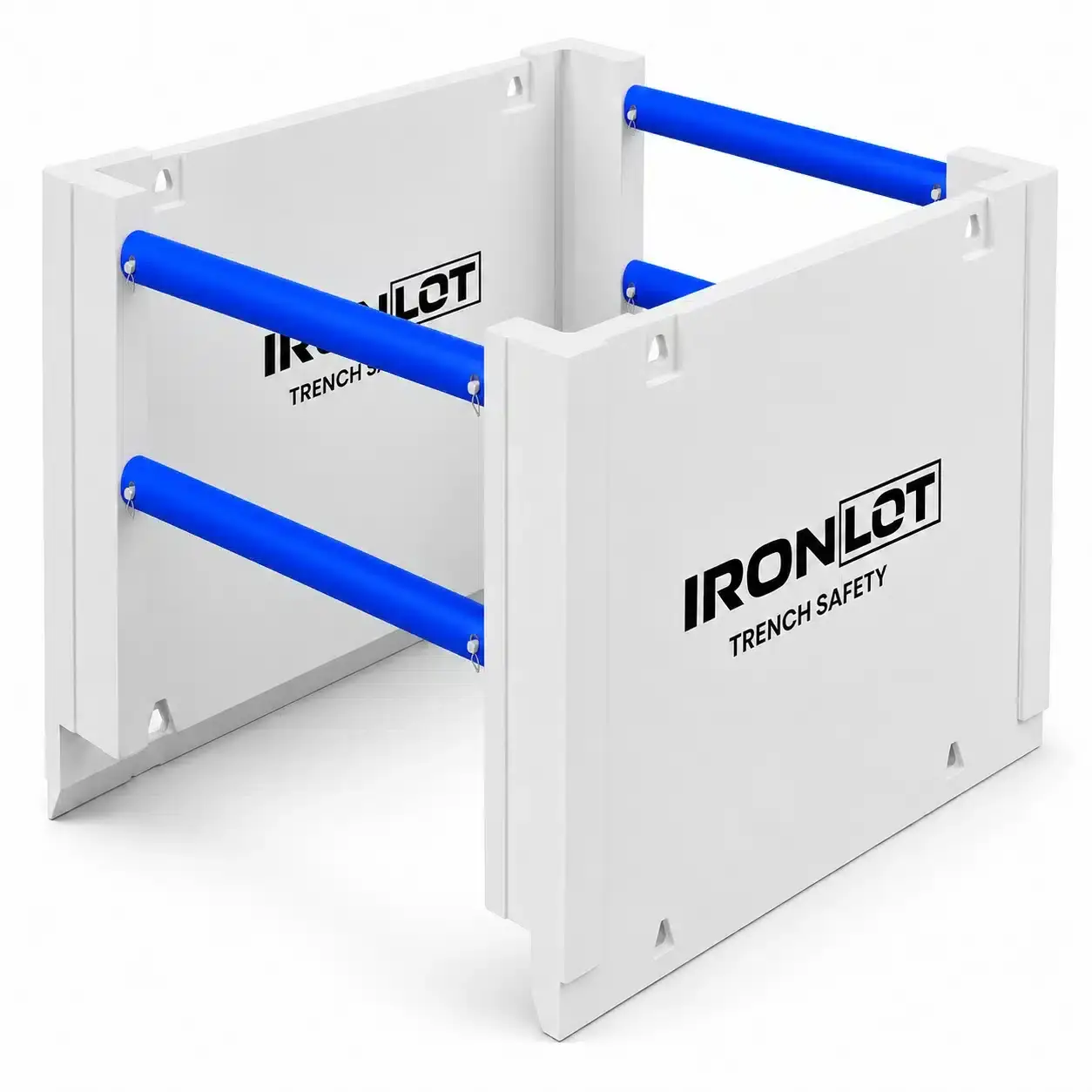

A manhole box, also called a manhole trench shield or maintenance hole shield, is a specialized trench shielding system commonly used around manhole installations, maintenance holes, pipe tie-ins, and utility structure repair work.
Unlike a standard two-sided trench box, many manhole boxes are designed as four-sided shielding systems. This can help provide a more practical working area around a structure or connection point where a standard trench shield may not be the best fit.
Four-Sided Shielding
Manhole boxes are commonly used when contractors need shielding around multiple sides of a manhole, maintenance hole, or utility structure area.
Utility Tie-Ins
Manhole trench shields are used for pipe tie-ins, structure connections, repair work, and underground utility projects.
Project-Specific Selection
The right manhole box depends on trench dimensions, pipe clearance, soil conditions, site conditions, surcharge loads, tabulated data, and competent person review.
ESC 4" Manhole Trench Shields Series
Iron Lot can help source ESC 4" manhole trench shields for contractors working on maintenance hole installations, utility tie-ins, and repair applications. The table below reflects model information for the ESC 4" Manhole Trench Shields Series.
Specifications, shield capacities, and maximum excavation depths should be verified against the manufacturer tabulated data for the specific manhole box being used. Final selection and use should be based on OSHA 29 CFR 1926 Subpart P, manufacturer tabulated data, soil conditions, surcharge loads, site conditions, and competent person review.
| Model | Height x Length | Weight | Pipe Clearance | Length Between Spreaders | Shield Capacity | B-Soil Max Depth | C-60 Soil Max Depth | C-80 Soil Max Depth |
|---|---|---|---|---|---|---|---|---|
| MSB4-48 | 4 x 8 ft | 2,926 lb | 24 in | 7'2" | 2,400 psf | 53 ft | 40 ft | 30 ft |
| MSB4-410 | 4 x 10 ft | 3,243 lb | 24 in | 9'2" | 2,400 psf | 53 ft | 40 ft | 30 ft |
| MSB4-68 | 6 x 8 ft | 3,875 lb | 48 in | 7'2" | 2,200 psf | 49 ft | 37 ft | 28 ft |
| MSB4-610 | 6 x 10 ft | 4,376 lb | 48 in | 9'2" | 2,200 psf | 49 ft | 37 ft | 28 ft |
| MSB4-88 | 8 x 8 ft | 4,772 lb | 52 in | 7'2" | 2,100 psf | 47 ft | 35 ft | 25 ft |
| MSB4-810 | 8 x 10 ft | 5,458 lb | 52 in | 9'2" | 2,100 psf | 47 ft | 35 ft | 25 ft |
| MSB4-1010 | 10 x 10 ft | 6,542 lb | 76 in | 9'2" | 2,000 psf | 47 ft | 35 ft | 25 ft |
Model availability, current specifications, accessories, spreaders, and freight should be confirmed when requesting a quote.
Kundel Titan Rap-O-Round Manhole Shields
Iron Lot can also help customers source Kundel Titan Rap-O-Round manhole shields for manhole, maintenance hole, and utility structure work. Kundel manhole boxes are commonly considered for projects involving manhole installation, tie-ins, utility connections, and repair work.
Available configurations may include Titan 3 and Titan 5 Rap-O-Round models. Features may include formed steel construction, knife-edge taper, reinforced pounding areas, pipe sockets, stacking lugs, and cutting bars depending on the model and current manufacturer information.
Availability, dimensions, weights, production depth information, and applicable tabulated data should be confirmed before purchase.
Request Kundel Manhole Box Pricing
Manhole Boxes for Maintenance Hole Installation and Repair Projects
Manhole boxes are used by underground utility contractors, municipal crews, public works departments, and excavation contractors working around utility structures and maintenance holes.
- Manhole installation
- Maintenance hole work
- Pipe tie-ins and utility connections
- Water, sewer, and storm utility repair
- Structure access and repair projects
- Municipal and public works excavation
- Underground utility construction
Manhole boxes may be used with standard trench shields for certain jobsite applications, depending on site conditions, manufacturer tabulated data, and competent person review.
Manhole Boxes vs. Standard Trench Boxes
Manhole boxes and standard trench boxes are both used as trench shielding equipment, but they are often selected for different jobsite needs.
| Category | Manhole Boxes | Standard Trench Boxes |
|---|---|---|
| Common Use | Manhole installation, maintenance hole work, tie-ins, utility structures, and repair projects. | Linear trench work such as pipe installation, utility runs, and general excavation projects. |
| Shielding Layout | Often designed as a four-sided shielding system around a structure or connection point. | Commonly configured as two side panels connected by spreaders. |
| Working Area | Useful where contractors need working room around a manhole, structure, or tie-in area. | Useful for longer trench runs where the work area generally follows the trench line. |
| Selection | Should be selected according to tabulated data, pipe clearance, trench dimensions, soil conditions, surcharge loads, and competent person review. | Should be selected according to tabulated data, trench dimensions, soil conditions, surcharge loads, and competent person review. |
How to Choose a Manhole Box
Manhole box selection should be based on the specific project, not just the listed size. The contractor and competent person should review trench dimensions, structure size, pipe clearance, soil conditions, surcharge loads, site constraints, lifting equipment, and manufacturer tabulated data.
Iron Lot can help review available equipment options, but final selection and use should be based on OSHA 29 CFR 1926 Subpart P, manufacturer tabulated data, site conditions, and competent person review.
Tabulated Data, Depth Ratings, and Competent Person Review
Registered Professional Engineer Stamp
Every trench box Iron Lot sells comes with manufacturer tabulated data specific to that trench box. The tabulated data includes depth ratings and a stamp from a registered professional engineer.
Manhole boxes should be selected and used according to OSHA 29 CFR 1926 Subpart P, manufacturer tabulated data, trench depth, soil conditions, site conditions, surcharge loads, structure conditions, pipe clearance needs, and competent person review.
Iron Lot can help supply equipment and manufacturer information, but final selection and use are the responsibility of the contractor, competent person, and qualified professionals involved with the project.
Freight and Delivery Support for Manhole Boxes
Iron Lot can help coordinate freight and delivery support for manhole boxes, spreaders, and related trench safety equipment. Availability, lead times, freight cost, and delivery options can vary by equipment, project location, and current inventory.
When you request a quote, include your delivery ZIP code, project location, and timeline so Iron Lot can help provide better quote support.
Request Freight and Quote SupportRelated Trench Safety Equipment
Contractors buying manhole boxes may also need steel trench boxes, aluminum trench boxes, bedding boxes, road plates, spreaders, and related trench safety equipment.
Steel Trench Boxes
Steel trench boxes are commonly used for excavation, utility work, and larger trench shielding applications.
View Steel Trench Boxes
Aluminum Trench Boxes
Aluminum trench boxes and modular aluminum panel shields are available for contractors who need lighter trench shielding options.
View Aluminum Trench Boxes
Bedding Boxes
Bedding boxes help stage stone, gravel, and bedding material for trench backfill and utility work.
View Bedding BoxesRelated Trench Box Resources
Manhole Box FAQs
What is a manhole box?
A manhole box is a specialized trench shield commonly used for manhole installation, maintenance hole work, pipe tie-ins, utility structures, and repair projects. Many manhole boxes are designed as four-sided shielding systems.
Does Iron Lot sell manhole boxes?
Yes. Iron Lot can help source manhole boxes, manhole trench shields, spreaders, and related trench safety equipment. Contact Iron Lot for current availability and pricing.
What are manhole boxes used for?
Manhole boxes are commonly used for manhole installation, maintenance hole work, pipe tie-ins, utility connections, repair projects, and underground utility structure work.
Are manhole boxes different from standard trench boxes?
Yes. A standard trench box is often used for linear trench work. A manhole box is commonly used around a manhole, utility structure, or tie-in area where contractors need working room around the structure.
Do manhole boxes come with tabulated data?
Every trench box Iron Lot sells comes with manufacturer tabulated data specific to that trench box. The tabulated data includes depth ratings and a stamp from a registered professional engineer.
Does Iron Lot list manhole box pricing online?
No. Manhole box pricing can vary based on model, availability, configuration, spreaders, accessories, freight, and project needs. Contact Iron Lot for current pricing and quote support.
Need a manhole box, manhole trench shield, spreaders, or related trench safety equipment for a utility structure, maintenance hole, tie-in, or repair project? Contact Iron Lot for current availability, quote support, and freight coordination.
