2′ x 10′ MAPS Yellow Aluminum Sheeting Guide

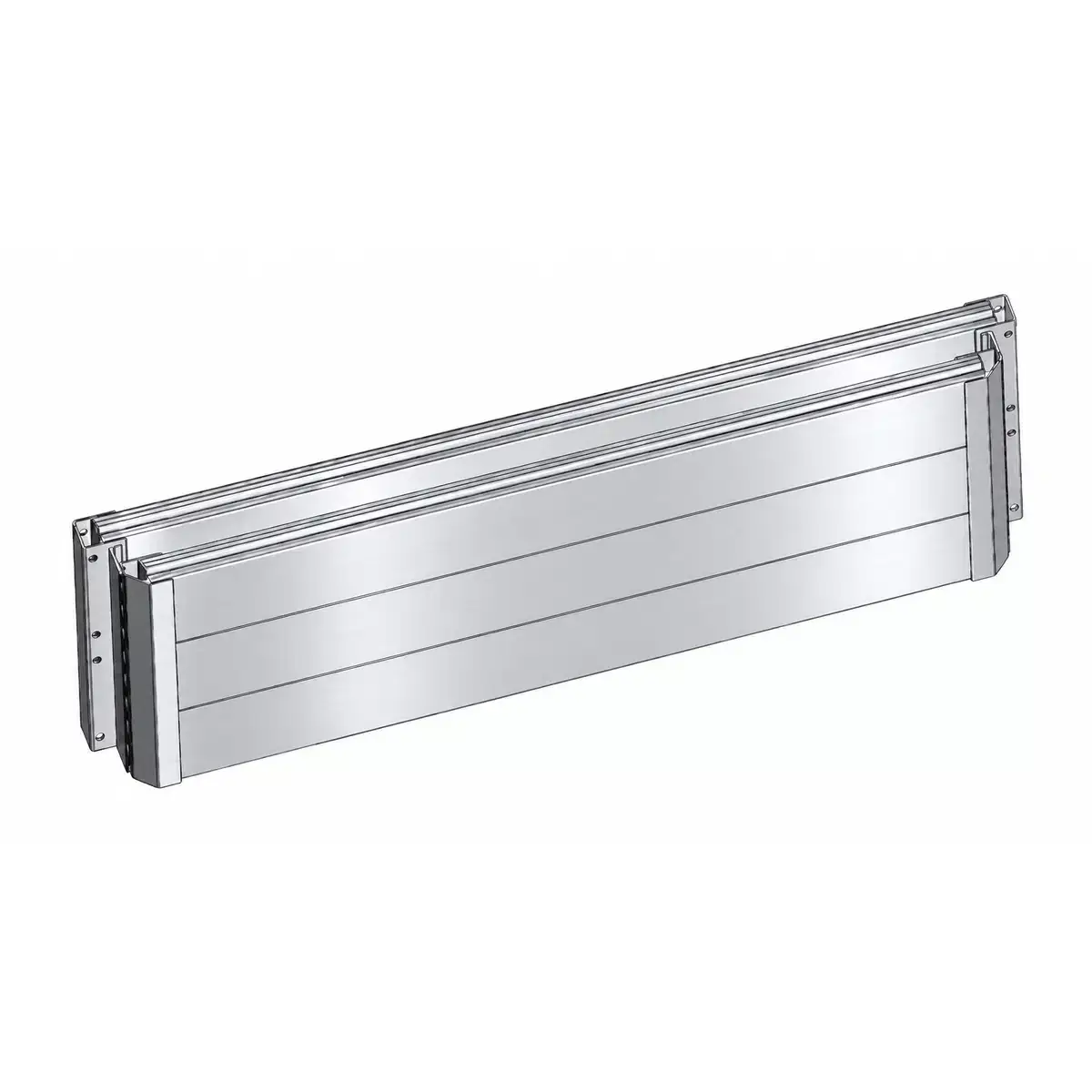

The 10.6 PS-2-SGMP-210YEL is a 2-foot deep x 10-foot long aluminum sheeting guide designed for use with the MAPS modular buildable box system. The guide connects into compatible buildable box corner posts and has a listed weight of 280 lb. The sheeting guide fits in place of a 2-foot modular box panel section, allowing sheet piles to be incorporated into the excavation protection system. This configuration can be useful where sheeting must extend up to or over obstructions such as cross-trench utility lines. The guide may be used on one or multiple sides of a compatible modular aluminum buildable box. Selection and use must follow the manufacturer’s current tabulated data, soil classification, surcharge conditions, complete box configuration, and applicable Competent Person requirements.

10.6 PS-2-SGMP-210YEL Specifications

Sheeting Guide Capacity and Allowable Depth

The allowable frame capacity and excavation depth depend on the sheet-pile configuration being used. This product provides separate values for a 2-foot toe-in with 5 feet clear and for 4-foot, 3-foot, and 2-foot cantilever configurations.

2′ Toe-In / 5′ Clear Depth Ratings

4′ Cantilever Depth Ratings

3′ Cantilever Depth Ratings

2′ Cantilever Depth Ratings

Designed for Sheet Pile Installation Around Obstructions

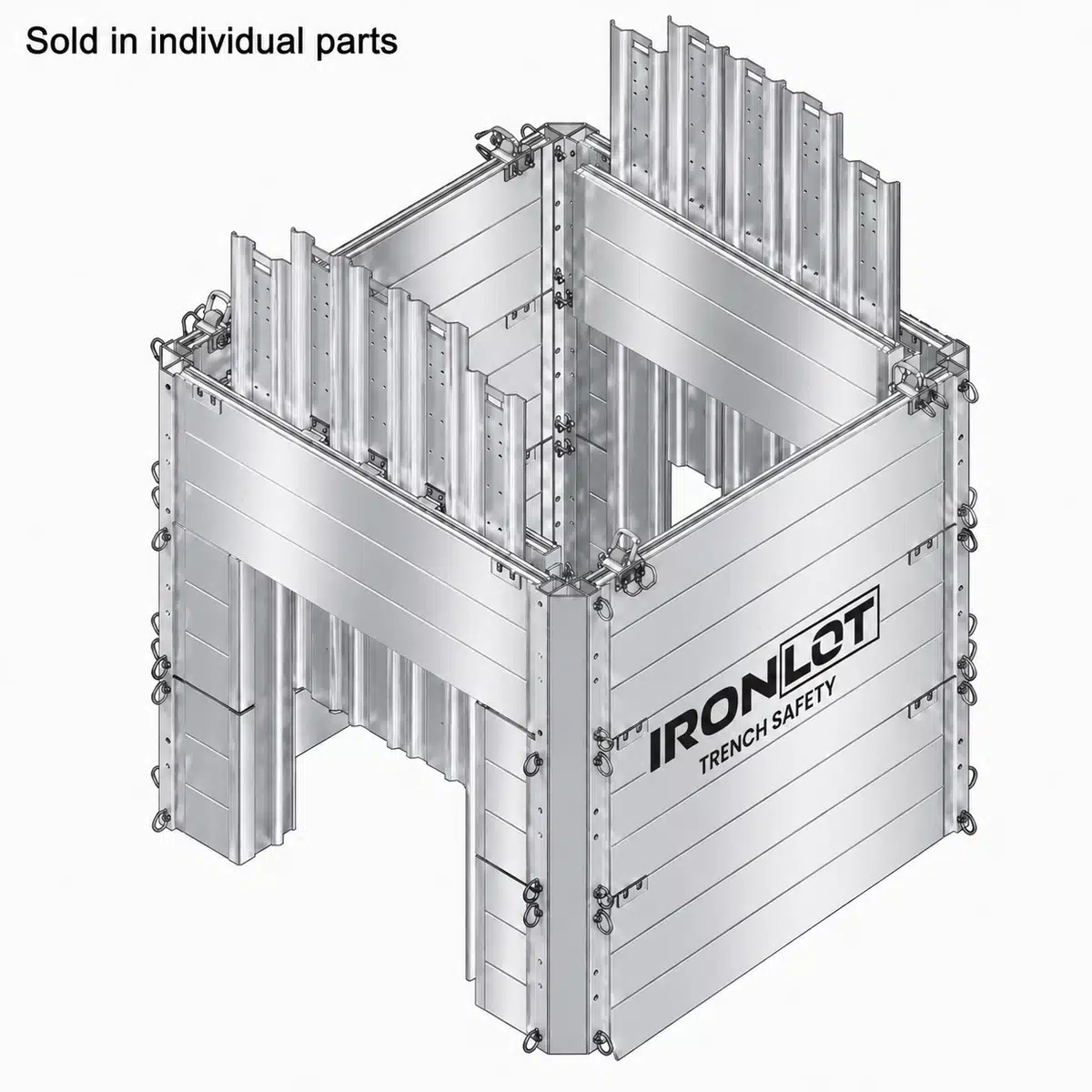

The MAPS Yellow sheeting guide allows sheet piles to be incorporated into a modular buildable box configuration. This provides an option for excavations where a conventional solid panel may interfere with a crossing utility, pipe, or other obstruction. The guide may be installed at any vertical location on the box in place of a 2-foot panel section and may be used on one, two, three, or four sides when the complete configuration is permitted by the tabulated data. Sheet piles may be interlocked or may be installed with gaps up to the permitted maximum. If soil sloughing or raveling occurs through the openings, the gaps must be reduced until the condition is prevented.

MAPS Yellow Sheeting Guide Configuration Requirements

The 10.6 PS-2-SGMP-210YEL is one component of a complete modular aluminum shoring-box configuration. The guide frame should not be selected solely on the basis of its physical dimensions or PSF capacity. Important configuration requirements include:

• use with compatible full-length corner posts;
• all areas above the sheet pile guide must be shored with the compatible Modular Aluminum Buildable Box system;
• soil must be identified in accordance with OSHA Subpart P, Appendix A before applying the tabulated data;
• the applicable toe-in or cantilever configuration must be identified;
• the complete buildable box wall and strut configuration must comply with the applicable tabulated data;
• surcharge loads and changing excavation conditions must be evaluated;
• sheeting guides must be installed and removed from outside the trench; and
• a Competent Person trained and experienced in the use of sheeting guides must oversee the application.

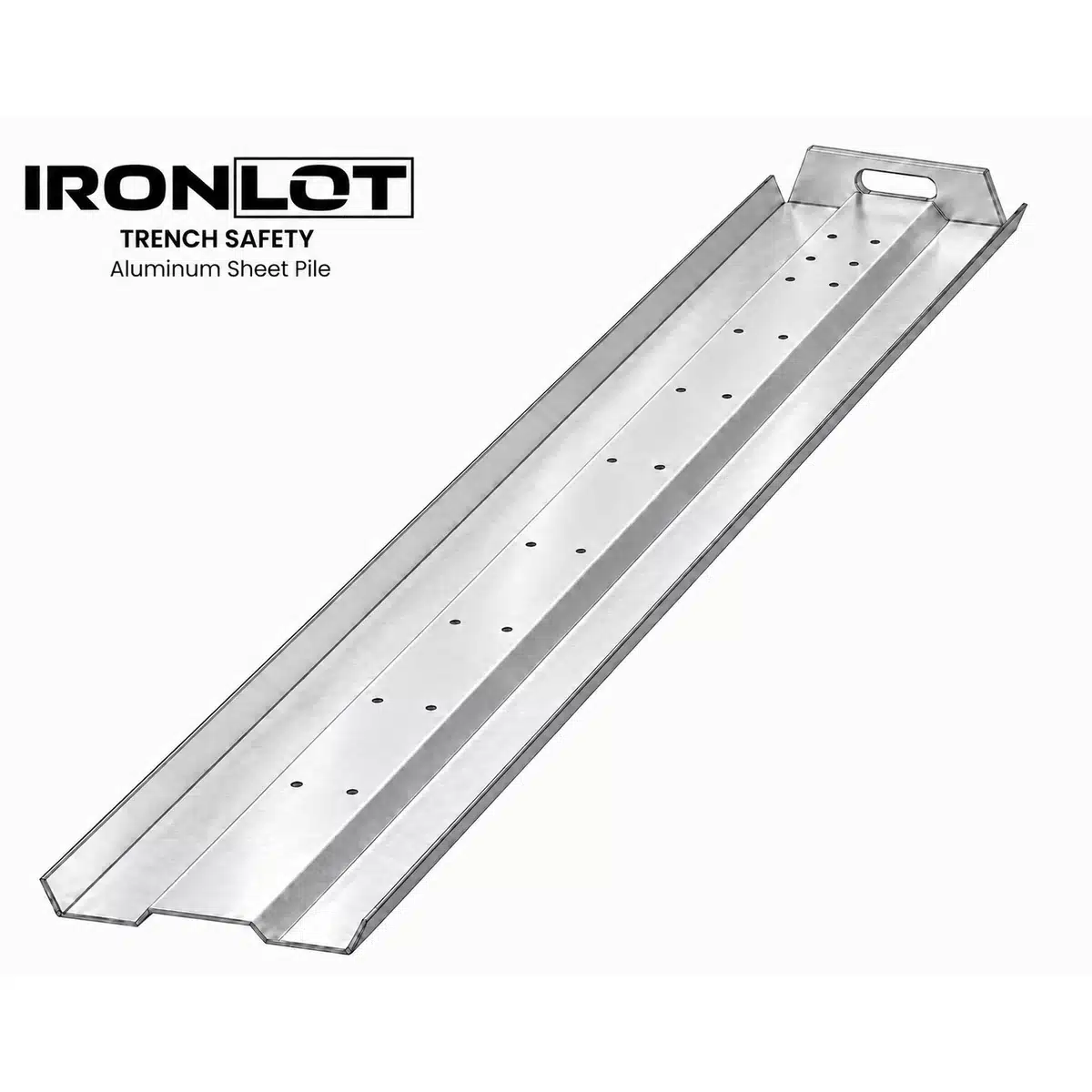

Sheeting Installation

This sheeting guide is designed to be pushed into place rather than pounded. Sheet piles may be skipped by a maximum of 6 inches provided the soil does not slough or ravel through the gaps. If sloughing or raveling occurs, the openings must be reduced until it is prevented.

Soil Classification and Allowable Depth

Allowable depth depends on the soil condition and selected sheeting configuration. Soil classification must be established in accordance with OSHA Subpart P, Appendix A before being compared to the tabulated data. The tabulated data uses A-25, B-45, C-60, and C-80 design conditions. C-60 is a manufacturer-defined condition and is not an OSHA soil classification. The complete system—including the sheeting guide, sheet piles, modular panels, corner posts, struts, connections, and other required components—must be evaluated under the applicable tabulated data.

Verify the Complete System Before Ordering

Need Help Selecting MAPS Sheeting Guide Components?

Contact Iron Lot with the required guide length, excavation depth, soil classification, sheet-pile configuration, box dimensions, working clearance, and project requirements. We can help identify compatible MAPS Yellow components and provide current pricing and availability. Call Iron Lot at 336-516-8011 or request a quote for the 10.6 PS-2-SGMP-210YEL MAPS Yellow 2′ x 10′ Aluminum Sheeting Guide.
