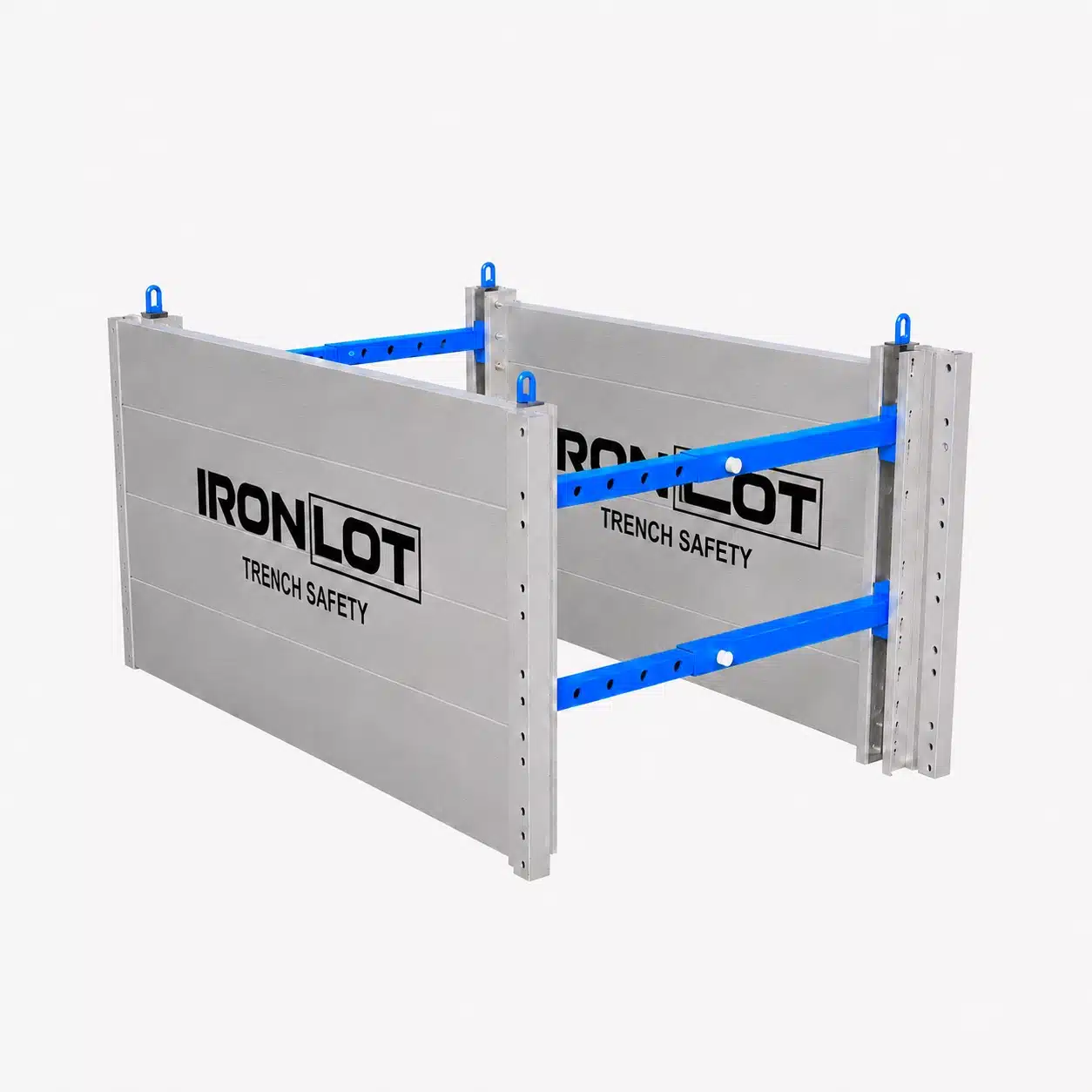

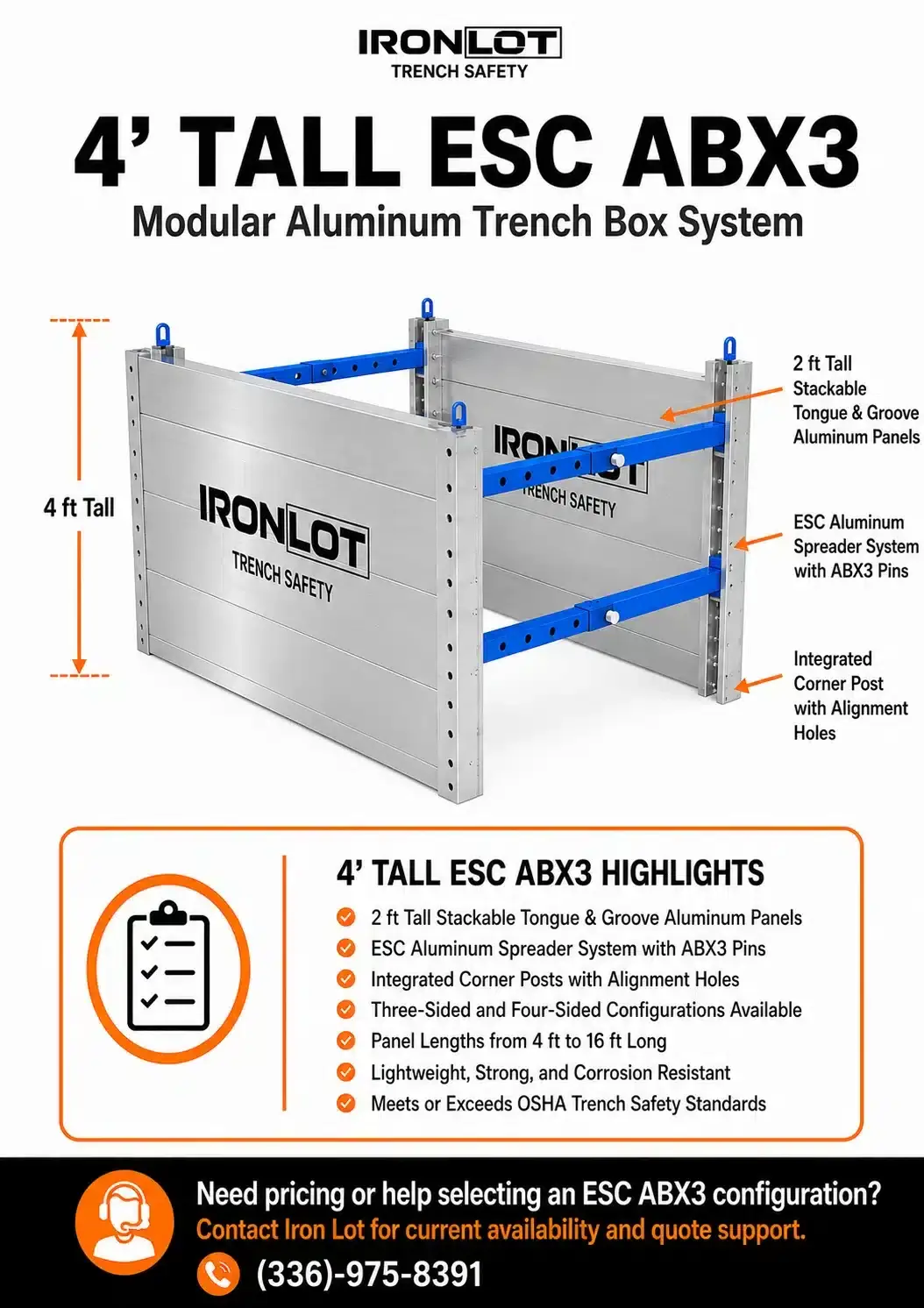

4′ x 6′ ESC ABX3 Aluminum Trench Box

The ESC ABX3-46 is a 3-inch-wall aluminum trench box designed for localized underground utility, municipal, and excavation work. Its 4-foot height and 6-foot length provide a practical working area for service connections, utility tie-ins, spot repairs, and other concentrated excavation tasks where a longer trench shield is not required.

This solid aluminum shield weighs approximately 583 lbs before spreaders, making it easier to transport, handle, and position than substantially larger trench-box configurations. Its shorter length can also be useful in streets, easements, and restricted-access jobsites where working space is limited.

The 4′ x 6′ box provides 18 inches of pipe clearance, 4′2″ of clear length between spreaders, and a 1,600 PSF shield capacity. Suitability depends on the excavation, soil classification, pipe or utility dimensions, selected spreaders, and actual jobsite conditions.

Key Benefits & Crew Efficiency

• Localized Utility Configuration: The 4-foot height and 6-foot length are well suited to utility connections, spot repairs, service installations, and concentrated excavation work.

• Solid Aluminum Construction: Three-inch-thick aluminum walls provide 1600 psf trench-shield capacity while maintaining a lower equipment weight than larger steel configurations.

• Manageable Shield Weight: At approximately 583 lbs before spreaders, this box can be transported and positioned with appropriately rated equipment commonly used on smaller utility projects.

• Useful Working Length: Provides 4′2″ of clear length between spreaders for compatible pipe, fittings, connections, and installation work.

• 18-Inch Pipe Clearance: Provides clearance beneath the spreader area for compatible pipe, conduit, and utility components.

• 1,600 PSF Shield Capacity: Delivers substantial panel capacity for a short aluminum trench-box configuration.

• Strong Depth Ratings: Rated to maximum depths of 25 feet in B45 soil, 20 feet in C60 soil, and 18 feet in C80 soil, subject to the applicable manufacturer tabulated data and jobsite conditions.

Product Specifications

Pricing & Logistics

Price: $4,165.00

Contact us to confirm current pricing, availability, spreader options, and shipping rates.

Freight & Delivery Coordination

Shipping rates are calculated based on equipment quantity, selected spreader configuration, additional components, and the final delivery destination.

The relatively low shield weight and short panel length can simplify transportation compared with larger trench boxes. Contractors must still account for the complete assembled weight, unloading requirements, and equipment needed to position the box safely.

We can coordinate delivery to your contractor yard, municipal facility, equipment location, or jobsite and provide pricing for multiple-unit or mixed-equipment orders.

Target Applications

The 4′ x 6′ ESC ABX3 aluminum trench box is designed for localized underground utility and excavation work where a short shield length and 4-foot panel height are appropriate.

Typical applications may include:

• water and sewer service connections;

• gas, electrical, and telecommunications installations;

• utility tie-ins, tees, crosses, and fittings;

• spot repairs and maintenance work;

• localized utility exposure;

• small pipe and conduit installations;

• valve and utility-component access;

• street and easement work;

• municipal and public works repairs;

• restricted-access excavation projects.

The 6-foot length can be easier to position around existing utilities, traffic restrictions, structures, and limited working areas than a longer mainline trench box.

The available 4′2″ length between spreaders should be compared with the actual dimensions of the pipe, fitting, utility component, rigging, and installation equipment. The shield must provide enough room for the planned work and required crew clearance.

Critical Selection & Safety Factors

Is the 4×6 ESC ABX3 Right for Your Jobsite?

Trench-box selection requires more than comparing the exterior height and length of the shield.

The correct configuration depends on excavation depth, soil classification, trench width, pipe or utility dimensions, surcharge loads, groundwater, adjacent structures, lifting equipment, installation method, and jobsite access.

This 4′ x 6′ aluminum trench box is worth considering when a project requires a short, manageable shield for localized utility work and the available 4′2″ working length is sufficient for the planned installation or repair.

Before selecting this box, verify that the pipe, fittings, connections, rigging, tools, and other components can be accommodated within the available working area. The 18-inch pipe clearance must also be evaluated against the actual utility dimensions and installation sequence.

For work requiring more longitudinal room, a 4′ x 8′ or 4′ x 10′ ABX3 trench box may be a better fit. Projects requiring greater panel height may require a compatible 6-foot or 8-foot-tall aluminum trench shield.

We can help compare ESC aluminum trench-box sizes based on your excavation requirements, utility dimensions, available equipment, transportation needs, and preferred working clearance.

Depth Ratings & Tabulated Data

The listed depth ratings must be evaluated together with the applicable manufacturer tabulated data and actual jobsite conditions.

The maximum depth ratings of 25 feet in B45 soil, 20 feet in C60 soil, and 18 feet in C80 soil are not universal excavation limits. The permitted configuration depends on soil classification, shield orientation, surcharge loads, groundwater, nearby structures, and other conditions addressed by the manufacturer’s data.

The Competent Person must evaluate the excavation, determine the applicable soil classification, account for site-specific hazards, and select and use the protective system accordingly.

The dimensions of the pipe, fitting, utility component, rigging, and installation equipment must also be reviewed to confirm compatibility with the available pipe clearance, spreader spacing, and working area.

Spreader Configurations

The appropriate spreader configuration depends on the required trench width, pipe or utility dimensions, installation method, and the amount of working clearance needed inside the trench box.

The selected spreaders add weight to the complete assembly and affect the trench width and usable interior working area.

When requesting a quote, provide:

• excavation depth;

• soil classification;

• required trench width;

• pipe or utility-component dimensions;

• required working clearance;

• preferred spreader width;

• project location;

• quantity of trench boxes required.

We can assist with spreader options, current availability, equipment quotes, and freight and delivery coordination.
