Description

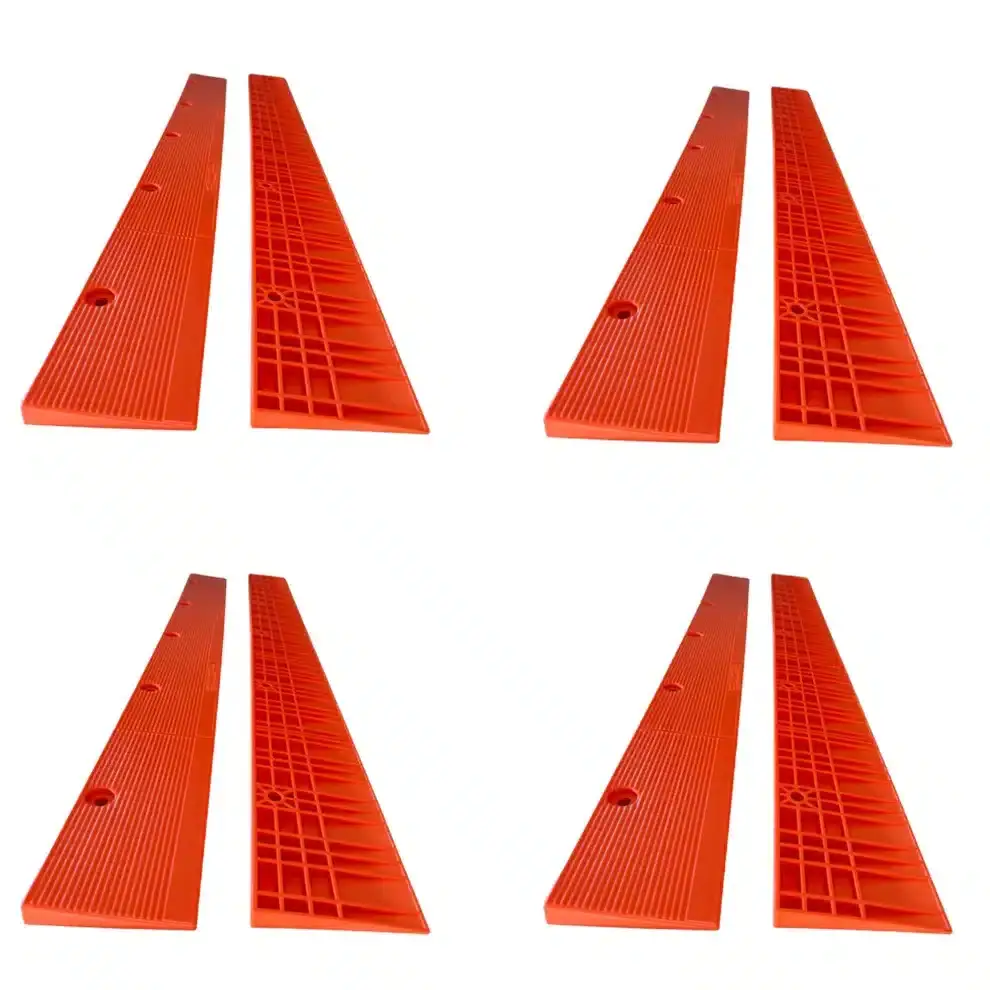

5′ Plate Lock Road Plate Ramps – 8 Pack
The Plate Locks PL58 8 Pack includes eight 5-foot road plate ramps designed to provide a reusable alternative to cold mix around exposed steel road plate edges.
Each ramp measures 60 inches long x 6 inches wide and is constructed from durable polypropylene. Pre-drilled mounting holes and pre-indented cut lines are positioned every 1 foot to simplify placement and allow ramps to be cut to fit the road plate layout when needed.
PL58 8-Pack Specifications
| Product Code | PL58 |
|---|---|
| Product | 5′ Plate Lock Ramp – 8 Pack |
| Quantity | 8 Ramps |
| Ramp Length | 5 ft / 60 in. |
| Ramp Width | 6 in. |
| Total Ramp Length | 40 linear ft |
| Material | Polypropylene |
| Anchor Hole Spacing | Every 1 ft |
| Cut Lines | Pre-indented every 1 ft |
Reusable Road Plate Ramp System
Plate Lock ramps are designed to secure and transition exposed steel road plate edges while providing a reusable alternative to cold mix. The polypropylene construction is corrosion resistant and intended for demanding construction and utility jobsite conditions.
With eight 5-foot sections, the PL58 package provides up to 40 linear feet of ramp material that can be arranged and cut as needed for the road plate layout.
Pre-Drilled and Easy to Fit
Each ramp includes pre-drilled mounting holes every 1 foot for anchor placement. Pre-indented cut lines at the same spacing allow individual sections to be shortened when needed to fit the exposed perimeter of a road plate.
Common Applications
- steel road plate securement in active work zones;
- temporary steel road plate installations;
- utility excavation and repair projects;
- municipal infrastructure work; and
- projects where a reusable alternative to cold mix is preferred.
Installation
Position the Plate Lock ramp along the exposed edge of the steel road plate. Drill the required anchor holes using an SDS Plus 3/8 in. x 12 in. drill bit, then secure the ramp using the appropriate anchors and a 9/16 in. SDS Plus anchor drive socket.
If a shorter section is required, the ramp can be cut at the pre-indented lines to fit the plate layout.
8-Pack Ramps Only
Important: This product page is for the 8-pack of Plate Lock ramps only. Anchors, drill bit, anchor-drive socket, shims, corners, and other installation components are not included unless purchased separately.
Need Plate Locks or Steel Road Plates?
Contact Iron Lot for Plate Lock ramps, installation components, steel road plates, current pricing, and availability.
Call Iron Lot at 336-516-8011 or request a quote for the PL58 5′ Plate Lock Ramp 8 Pack.
