6′ x 6′ Kundel V-Panel Aluminum Trench Box

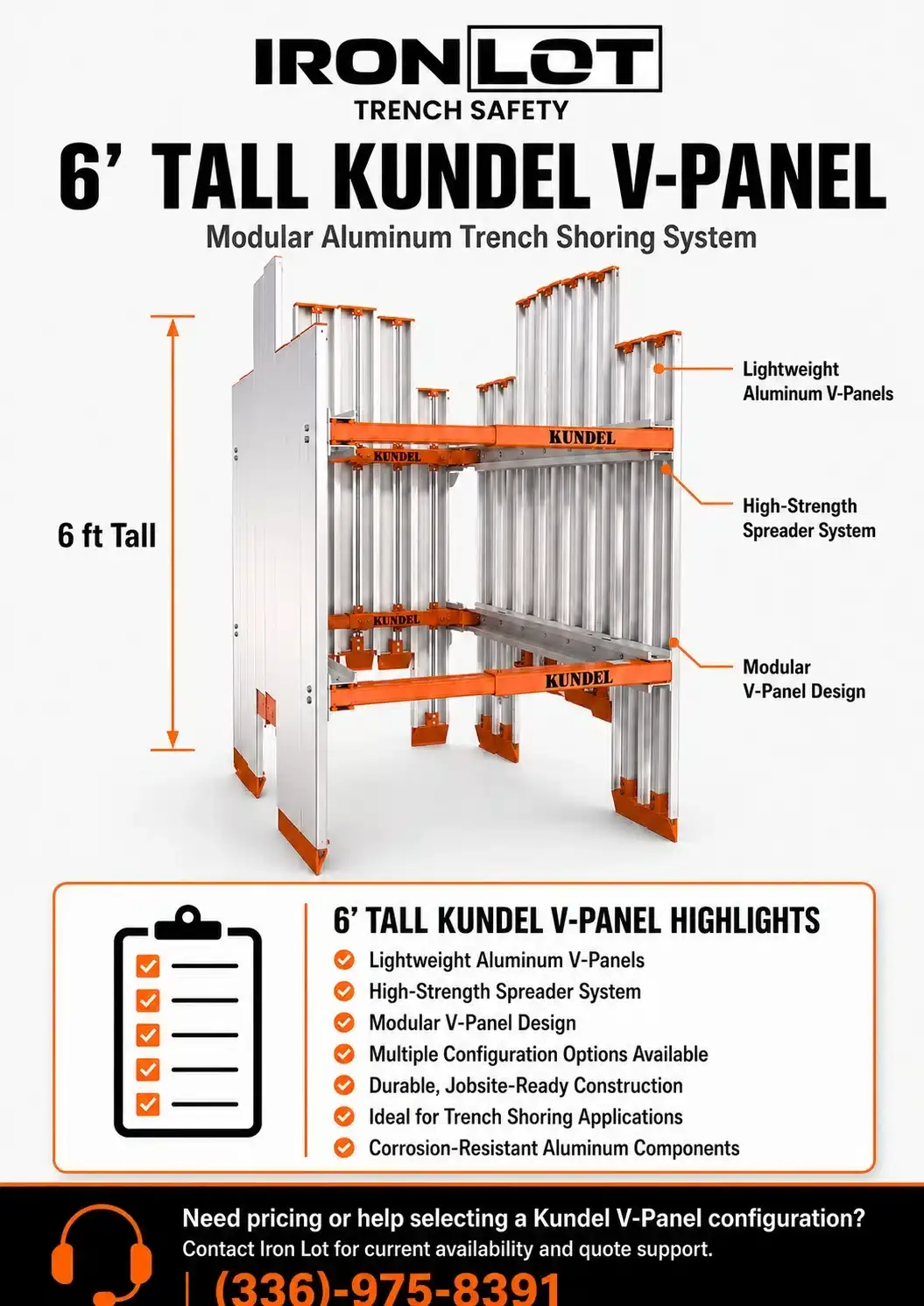

The Kundel 6′ x 6′ V-Panel is a modular aluminum trench-protection system designed for congested utility excavations, spot repairs, intersecting utility clusters, and other projects where conventional fixed-panel trench boxes may be difficult to position around existing infrastructure.

Unlike a conventional trench shield with fixed sidewalls, the V-Panel system uses independently adjustable vertical aluminum panels. Individual panels can be raised or lowered within the frame to accommodate crossing utilities, irregular pipe elevations, service lines, and other obstructions without removing the complete system from the excavation.

This configuration measures 6 feet high by 6 feet long and has a listed system weight of approximately 887 lbs. Its 2.5-inch vertical aluminum panels provide a listed panel capacity of 1,740 PSF. Maximum soil depth ratings are listed at 69 feet in Type A soil, 39 feet in Type B soil, and 29 feet in Type C soil, subject to the applicable Kundel tabulated data and complete system configuration.

The Iron Lot basic kit is listed with two open ends and a set of four 40–64-inch adjustable beam spreaders. Additional spreader sizes, end-closing components, hydraulic adjusters, leg kits, and other accessories may be available depending on the planned excavation.

Key Benefits & Crew Efficiency

• Independent Vertical Panel Adjustment: Individual panels can be repositioned vertically to work around crossing utilities, irregular pipe configurations, and unexpected underground obstructions.
• Designed for Congested Utility Work: Particularly useful for spot repairs, intersecting utility clusters, improperly mapped infrastructure, and excavations where several utility elevations must be accommodated.
• 6-Foot Working Length: Provides a balanced work area for localized repairs and utility connections without requiring the excavation length of an 8-, 10-, or 12-foot system.
• 1,740 PSF Panel Capacity: Provides strong manufacturer-listed panel capacity for compatible excavation and utility applications.
• Lightweight Aluminum Panels: The approximately 887-pound listed system weight makes this configuration easier to transport and position than many conventional steel systems.
• Pin-Less Sliding Design: Panels are repositioned through the clamping system rather than loose adjustment pins, reducing the number of small components crews must manage.
• Steel Knife Edges: Detachable steel knife edges help the panels penetrate soil during installation.
• Steel Tamping Blocks: Reinforced tamping areas at the top of the panels help protect the aluminum extrusion during approved installation procedures.
• Adjustable System Width: Aluminum horizontal walers and telescoping spreader beams allow the system width to be configured for compatible excavation dimensions.
• Expandable Protection: Compatible components may be used to close one or both ends or create three- and four-sided configurations when permitted by the manufacturer’s tabulated data.

Product Specifications

Pricing & Logistics

Price: $17,410.00

Contact Iron Lot to confirm current pricing, availability, basic-kit contents, selected spreader range, optional end panels, accessories, and shipping costs.

Basic Kit and Available Accessories

The Iron Lot basic 6′ x 6′ V-Panel kit is listed with two open ends and four 40–64-inch adjustable beam spreaders. Additional spreader ranges may be available to create narrower or wider working configurations.

Depending on the excavation and intended use, additional equipment may include:

• Alternative adjustable spreader sizes
• End-closing brackets and vertical panels
• Three-sided or four-sided components
• Hydraulic spreader adjusters
• Leg kits
• Additional V-Panels
• Rigging and handling accessories
• Replacement knife edges and tamping components

Confirm the exact components included with the quoted package. Manufacturer sidewall sets, accessory packages, and Iron Lot basic kits may contain different combinations of panels, walers, spreaders, and connecting hardware.

Freight and Delivery Coordination

The modular system can be transported as individual panels, walers, spreaders, and accessories. Transportation planning should account for the complete shipment weight, component dimensions, securement requirements, unloading equipment, and available assembly area.

The listed 887-pound system weight may change with the selected spreader size, end-closing panels, hydraulic adjusters, leg kits, and other accessories.

Iron Lot can coordinate delivery to your contractor yard, municipal facility, equipment location, or jobsite.

Target Applications

The Kundel 6′ x 6′ V-Panel is primarily designed for utility and spot-repair excavations where existing infrastructure makes a conventional fixed-wall trench box difficult to use.

Typical applications may include:

• Intersecting utility clusters
• Improperly mapped underground utilities
• Water-service and water-main repairs
• Sewer-service and sewer-main repairs
• Gas-service connections
• Electrical and telecommunications work
• Utility tie-ins, tees, crosses, and service connections
• Localized utility exposure
• Valve, meter, and utility-component access
• T-off excavations from an existing main trench
• Spot repairs in streets and easements
• Congested jobsites with multiple utility elevations

The independently adjustable panels allow the system to be configured around crossing pipe, conduit, cables, and other existing utilities. A panel can be positioned higher or lower than adjacent panels when permitted by the complete system design and applicable tabulated data.

The 6-foot length provides useful working room for localized repair and connection work while requiring less longitudinal excavation space than longer V-Panel systems.

Suitability depends on the excavation dimensions and the size, depth, and location of every pipe, fitting, valve, conduit, cable, structure, tool, and piece of equipment used during the work. Customers should verify that the selected spreader width, panel positions, and end configuration provide adequate clearance.

Independent Vertical Panel Adjustment

The defining feature of the V-Panel system is its ability to adjust individual vertical panels independently. When a crossing utility or irregular obstruction is encountered, the affected panel may be repositioned while the surrounding panels remain at their required elevations.

The panel clamping system uses a pin-less sliding design. Adjustment is performed through the manufacturer’s clamping and locking procedure rather than through a series of loose panel-positioning pins.

All panels must be properly secured before the system is placed into service. Vertical adjustment must remain within the limitations established by Kundel’s instructions and applicable tabulated data.

Open-End, Three-Sided and Four-Sided Configurations

The standard Iron Lot basic kit is listed with two open ends. This arrangement provides access for compatible pipe, utility components, excavation equipment, and installation work.

Where additional end protection is required, compatible brackets and vertical panels may be attached to the framing to close one or both ends. Depending on the project and manufacturer approval, the V-Panel system may be configured as:

• A two-sided open-end system
• A three-sided system with one closed end
• A four-sided system with both ends closed
• A T-off or intersecting-trench configuration

End panels and connecting components must not be assumed to be included with the standard kit. Confirm the required configuration and component list before ordering.

Critical Selection & Safety Factors

Is the Kundel 6′ x 6′ V-Panel Right for Your Excavation?

The exterior height and length of the system do not by themselves determine whether it is suitable for a project.

The selection process should consider:

• Excavation depth, width, and geometry
• Soil classification
• Surcharge loads
• Groundwater and changing soil conditions
• Adjacent traffic, structures, spoil piles, and equipment
• Existing utility locations and elevations
• Pipe and utility-component dimensions
• Required panel elevations
• Selected spreader range and system width
• Open-end, three-sided, or four-sided configuration
• Access and egress requirements
• Assembly, lifting, driving, and removal equipment
• Whether the system will be used for shielding or an approved shoring configuration

The 6-foot panel height does not mean the system is limited to a 6-foot-deep excavation. It also does not mean the system can automatically be used at its maximum listed soil depth under every jobsite condition.

The project’s Competent Person must inspect the excavation, classify the soil, evaluate surcharge loads and adjacent hazards, and verify that the complete system is appropriate for the excavation and installed correctly.

Depth Ratings & Tabulated Data

The uploaded Iron Lot product workbook lists the following maximum soil depth ratings for the 6′ x 6′ configuration:

• Type A soil: 69 feet
• Type B soil: 39 feet
• Type C soil: 29 feet

These ratings must be interpreted through the current applicable Kundel tabulated data. The allowable depth may depend on the selected system width, panel elevations, end configuration, installation method, soil conditions, surcharge loads, and whether the system is being used as shielding or shoring.

The listed depth rating is not the same as the height of the protected work area. Panel placement, the allowable distance from the bottom of the panels to the excavation bottom, and the allowable distance from the top of the panels to the top of the excavation must comply with the applicable safety requirements and manufacturer instructions.

Excavations exceeding 20 feet in depth generally require a protective system designed or approved under the applicable engineering requirements. Do not rely on a product-page rating as a substitute for current tabulated data or a project-specific engineered design when one is required.

Because product specifications and tabulated data can be revised, verify all ratings against the current manufacturer documents supplied with the equipment.

Assembly, Installation & Handling

The V-Panel system must be completely assembled with the required panels, walers, spreaders, connectors, and locking components before use.

The complete 887-pound system should not be manually lifted or repositioned. Use approved lifting points, rigging, and equipment with sufficient rated capacity for the complete configuration.

Steel knife edges at the bottom of the panels assist with panel installation, while reinforced tamping areas help protect the aluminum extrusion. Installation and panel driving must follow Kundel’s approved procedures and must not damage the panel, frame, clamps, or connecting components.

Before each use, inspect:

• Extruded aluminum panels
• Panel clamps and locking mechanisms
• Steel knife edges
• Steel tamping blocks
• Horizontal walers and frame members
• Spreaders and spreader adjusters
• End-panel brackets and connectors
• Rigging and lifting points
• Welds and structural areas
• Components for cracks, bends, distortion, damage, or excessive wear

Damaged or questionable components should be removed from service until they have been evaluated according to the manufacturer’s requirements.

Why Choose the Kundel 6′ x 6′ V-Panel?

The 6′ x 6′ V-Panel offers capabilities that a conventional fixed-wall trench box may not provide. Its individually adjustable panels allow contractors to work around crossing utilities and varied utility elevations while maintaining a modular protective-system configuration.

The 6-foot length provides a practical balance between working room and excavation footprint. It offers more space than a very short spot-repair shield while remaining easier to position than longer 8-, 10-, or 12-foot V-Panel systems.

Its listed 1,740 PSF panel capacity is the highest among the 6-foot-high V-Panel lengths included in the Iron Lot workbook. This makes the 6′ x 6′ configuration worth considering when a short system length, strong panel capacity, and independent vertical adjustment are all important to the project.

Final selection must be based on the actual excavation, intended application, existing utility locations, component dimensions, selected spreader configuration, current manufacturer’s tabulated data, and the requirements established by the project’s Competent Person.

Request Pricing and Availability

Iron Lot supplies trench boxes and trench safety equipment to contractors throughout the United States.

Contact us for:

• Current product availability
• Spreader selection and pricing
• Multiple-unit quotations
• Freight quote and delivery coordination
• Alternative aluminum trench box options
• Steel versus aluminum trench box comparisons
• Equipment financing information

This Product Ships from Ohio

Payment Options:

We accept company check, wire transfer, ACH, and credit card payments. We also offer financing through Ascentium Capital.

Financing: Ascentium Capital offers fast and flexible financing. With their quick and convenient way to purchase equipment, working with Ascentium Capital helps you acquire the funds you need for your equipment purchase. With financing and leasing of up to $2,000,000, Ascentium Capital works with you to make the application process simple and at no obligation.

To learn more about Ascentium Capital and how it can assist you, click image below:

Call Iron Lot at 336-516-8011 or request a quote online for current pricing, availability, and freight information.

Not sure which trench box is right for your project? Compare additional trench boxes for sale, including steel, aluminum, and manhole box options.
