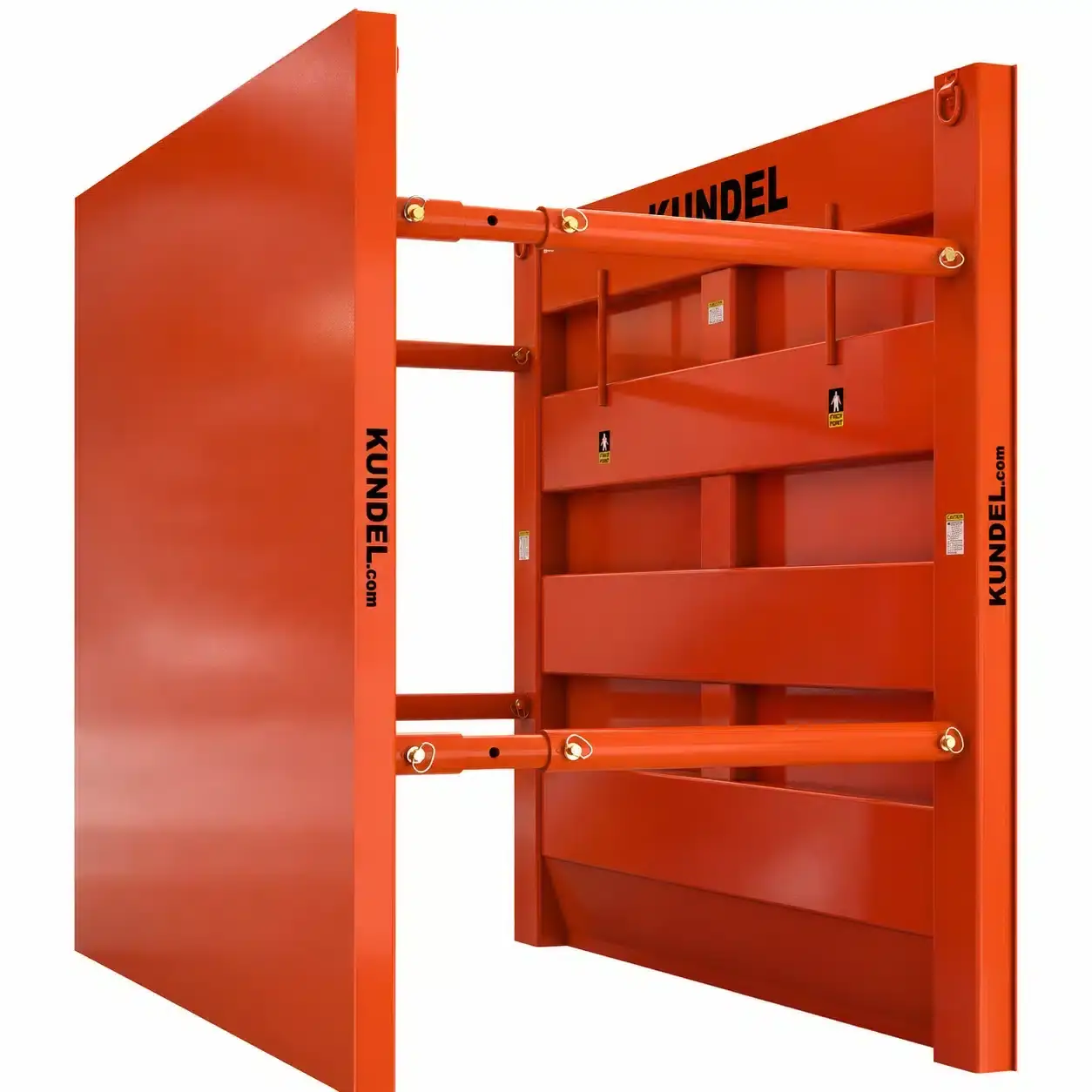

8′ x 10′ Kundel Basic 3 Steel Trench Box

The Kundel Basic 3 8′ x 10′ steel trench box is a durable utility shield designed for municipalities, plumbing contractors, industrial maintenance departments, and underground utility crews using properly rated compact excavators, small excavators, or rubber-tired backhoes.

This model combines an 8-foot sidewall height with a 10-foot overall length. It is primarily suited to localized utility excavations where an 8-foot shield height is needed but a longer 12-foot trench box would require unnecessary excavation or be more difficult to position.

The 9-foot opening between spreaders provides longitudinal working room for compatible valves, fittings, utility taps, service connections, tie-ins, localized repairs, tools, and crew movement. The 10-foot length offers more space than the 8′ x 6′ and 8′ x 8′ Basic 3 models while retaining a smaller excavation footprint than the 8′ x 12′ configuration.

The Basic 3 uses 3-inch double-wall, solid-welded steel sidewalls built for demanding field conditions. This model has a listed weight of approximately 2,160 lbs and includes a knife-edge bottom to assist with manufacturer-approved positioning in compatible soil conditions.

Each Basic 3 trench box requires four compatible spreaders. Spreaders are sold separately and must be selected according to the required inside width, excavation geometry, utility-component clearances, lifting equipment, and Kundel’s current tabulated data.

Key Benefits & Crew Efficiency

• 8-Foot Sidewall Height: Provides substantial vertical panel coverage for compatible utility repair and maintenance excavations.
• 10-Foot Overall Length: Provides an extended work area without requiring the excavation and positioning space of the longer 12-foot model.
• 9 Feet Between Spreaders: Offers open longitudinal space for compatible valves, fittings, service connections, utility components, tools, and crew movement.
• Knife-Edge Bottom: Assists with manufacturer-approved placement and positioning in compatible excavation conditions.
• Approximately 2,160 lbs: Intended for handling with properly rated excavation and lifting equipment.
• Steel Alternative to Aluminum: Provides durable welded-steel construction in a product line designed for use with smaller excavation equipment.
• Double-Wall Construction: Three-inch steel sidewalls are built for repeated use on municipal, plumbing, utility, and industrial maintenance projects.
• Solid-Welded Steel Design: Provides a durable structural assembly for regular field use.
• Cast Steel Spreader Collars: Provide durable connection points for compatible Kundel Basic 3 spreaders.
• Forged Spreader Pins: Secure compatible spreaders within the box’s collar system.
• Integrated Tamping Blocks: Provide reinforced contact areas for manufacturer-approved positioning procedures.
• Integrated Lifting Lugs: Provide designated lifting points for properly rated rigging and equipment.
• Standalone or Base-Box Use: May be used independently or as the lower section in an approved stacked Basic 3 configuration.
• Tandem Capability: Compatible boxes may be connected in tandem when the complete arrangement is permitted by Kundel’s tabulated data.

Product Specifications

Pricing & Logistics

Listed Price: $9,038.19

The listed price is for the Kundel Basic 3 8′ x 10′ trench box. Four compatible spreaders are required to assemble a complete box and are sold separately.

Contact Iron Lot to confirm current pricing, availability, compatible spreader lengths, stacking components, tandem connectors, optional accessories, applicable taxes, and freight charges.

Required Spreaders

Each Basic 3 trench box requires four compatible spreaders. The correct spreader length depends on the desired inside working width, excavation geometry, pipe or utility-component dimensions, equipment clearance, and the limitations established in Kundel’s current tabulated data.

Spreaders should not be assumed to be included in the listed trench-box price. Confirm the required spreader size, quantity, forged spreader pins, and complete assembled configuration before ordering.

Optional Accessories

Available Basic 3 accessories may include:

• Compatible spreaders
• 12″ x 12″ utility cutout
• Stacking rings
• Tandem connectors
• Replacement forged spreader pins
• Compatible rigging and handling equipment

Optional accessories must be selected for this specific box and intended application. Confirm compatibility, pricing, and availability when requesting a quote.

Freight and Delivery Coordination

The trench box has a listed weight of approximately 2,160 lbs before adding spreaders, stacking rings, tandem connectors, rigging, or other accessories. The final assembled and shipping weight depends on the complete ordered configuration.

Transportation and unloading plans should account for the 96-inch panel height, 10-foot panel length, component securement, lifting capacity, rigging arrangement, unloading equipment, and available assembly space.

Iron Lot can coordinate delivery to a contractor yard, municipal facility, equipment location, or jobsite.

Target Applications

The Kundel Basic 3 8′ x 10′ is primarily suited to localized utility excavations where crews need an 8-foot shield height and more working length than a 6- or 8-foot-long box provides.

Potential applications may include:

• Water and sewer utility spot repairs
• Water-main and sewer-main taps
• Utility tie-ins, tees, crosses, and service connections
• Valve, meter, and curb-stop access
• Compatible valve and meter vault installations
• Compatible precast structure installations
• Bore pits and receiving pits
• Localized utility exposure and maintenance
• Minor mainline repair work
• Gas-service repairs and connections
• Electrical and telecommunications service work
• Plumbing repair excavations
• Industrial maintenance projects
• Emergency municipal utility repairs
• Work in streets, easements, and congested jobsites

The 10-foot overall length provides more working room than the 8′ x 6′ and 8′ x 8′ Basic 3 models. This additional space may be useful for compatible valves, fittings, utility connections, tools, rigging, and crew movement.

Compared with the 8′ x 12′ configuration, the 10-foot model requires less longitudinal excavation and positioning space. This may make it easier to place around pavement limits, existing utilities, nearby structures, traffic-control restrictions, landscaping, and other jobsite obstacles.

This model should not be selected solely because its 8-foot sidewall height corresponds with the anticipated excavation depth. Suitability depends on the actual dimensions and locations of the pipe, fitting, valve, structure, utility component, tools, equipment, and required crew workspace.

Customers should verify that the 108-inch length between spreaders and 27-inch pipe clearance provide adequate room for the intended work. Installation of precast structures, vaults, or other large components also requires verification of the open-end clearances and complete assembled inside width.

Standalone and Base-Box Configurations

The Basic 3 8′ x 10′ may be used as a standalone trench box where its height, length, inside width, working clearances, depth ratings, and complete assembled configuration are appropriate for the excavation.

Because it is an 8-foot-high box, it may also serve as the lower or base section in an approved stacked Basic 3 configuration. A compatible Basic 3 extension section may be installed above the base box when the complete arrangement is permitted by Kundel’s current tabulated data.

The base box, upper section, spreaders, stacking rings, connection points, structural capacities, panel lengths, and complete stacked system must all be compatible.

Do not stack boxes solely because their exterior dimensions appear similar. Confirm the approved connection method, spreader compatibility, complete assembled weight, lifting requirements, and tabulated limitations before use.

Tandem Configurations

Compatible Basic 3 trench boxes may be connected in tandem to create a longer shielded work area when the arrangement is supported by Kundel’s current tabulated data.

Tandem configurations require approved connectors and a complete evaluation of the boxes, selected spreaders, connection locations, excavation geometry, utility dimensions, lifting plan, and manufacturer requirements.

The 10-foot box already provides a substantial longitudinal working area. Tandem use should be limited to projects where additional length is required and the complete connected arrangement is permitted by the applicable manufacturer data.

Do not use improvised connections or assume that placing two trench boxes next to each other creates an approved tandem configuration.

Critical Selection & Safety Factors

Is the Kundel Basic 3 8′ x 10′ Right for Your Excavation?

The exterior height and length of a trench box do not by themselves determine whether it is suitable for a project.

The selection process should consider:

• Whether the box will be used independently, as a stacked base box, or in tandem
• Compatibility with any selected Basic 3 extension section
• Excavation depth, width, length, and geometry
• Available longitudinal working and placement space
• Soil classification
• Surcharge loads
• Groundwater and changing soil conditions
• Traffic, structures, spoil piles, and equipment near the excavation
• Pipe, fitting, valve, structure, and utility-component dimensions
• The 108-inch opening between spreaders
• Open-end clearance for structures or large components
• Required longitudinal, vertical, and lateral working clearances
• Selected spreader length and resulting inside width
• Access and egress requirements
• Lifting, placement, and removal equipment
• Stacking rings, tandem connectors, and optional cutouts
• The complete protective-system configuration

The project’s Competent Person must inspect the excavation, classify the soil, evaluate changing conditions and adjacent hazards, and verify that the selected trench-protection system is appropriate for the excavation and used correctly.

Depth Ratings & Tabulated Data

The listed maximum soil depth ratings for the Basic 3 8′ x 10′ are:

• Type A soil: 41 feet
• Type B soil: 24 feet
• Type C soil: 19 feet

These ratings must be interpreted through Kundel’s current tabulated data. They do not mean that an 8-foot-high trench box automatically provides a shielded work area at the listed excavation depths.

The allowable depth may depend on the selected spreader width, complete system configuration, soil conditions, surcharge loads, groundwater, excavation geometry, box placement, stacking arrangement, and other jobsite factors.

The listed depth rating is not the same as the available shielded work-area height. Placement of the trench box relative to the excavation bottom and the top of the excavation must comply with Kundel’s instructions, current tabulated data, and applicable requirements.

Excavations exceeding 20 feet in depth generally require a protective system designed or approved under the applicable engineering requirements. Do not rely on product-page ratings as a substitute for Kundel’s current tabulated data or a project-specific engineered design when one is required.

Assembly, Lifting & Inspection

The Basic 3 trench box must be assembled with four compatible spreaders and the required forged spreader pins before use. Stacked or tandem configurations also require all approved connecting components.

The complete box should be lifted, lowered, repositioned, and removed using the designated lifting lugs, properly rated rigging, and equipment with sufficient capacity for the complete assembled weight.

The 96-inch panel height and 10-foot panel length require careful control during assembly, lifting, positioning, and removal. Tamping blocks provide reinforced contact areas, while the knife-edge bottom assists with manufacturer-approved positioning in compatible soil conditions.

Do not strike unapproved areas of the sidewalls, spreader collars, lifting lugs, knife edge, or other structural components.

Before each use, inspect:

• Double-wall steel sidewalls
• Knife-edge sections
• Cast steel spreader collars
• Spreaders and forged spreader pins
• Tamping blocks
• Lifting lugs
• Stacking rings and connection points
• Tandem connectors
• Welds and structural areas
• Optional utility cutouts
• All components for cracks, bends, distortion, damage, or excessive wear

Damaged or questionable components should be removed from service until they have been evaluated according to the manufacturer’s requirements.

Why Choose the Kundel Basic 3 8′ x 10′?

The Basic 3 8′ x 10′ combines substantial sidewall height, an extended working area, and durable welded-steel construction. It is designed for crews that need more longitudinal room than the 8′ x 6′ or 8′ x 8′ configurations provide without moving to the longer 12-foot box.

The 9-foot opening between spreaders may provide useful room for compatible valves, fittings, utility connections, localized structures, tools, rigging, and crew movement. The 10-foot overall length can also remain practical for streets, easements, industrial facilities, and other jobsites where a longer shield would be more difficult to position.

The box may be used independently or serve as the base section in an approved stacked Basic 3 configuration when additional vertical panel coverage is required.

The double-wall steel sidewalls, cast steel spreader collars, forged pins, tamping blocks, lifting lugs, and knife-edge bottom provide a durable, field-ready system for municipal, plumbing, industrial maintenance, and underground utility crews.

Final selection must be based on the actual excavation, intended application, pipe, structure, or utility-component dimensions, selected spreaders, complete standalone or stacked configuration, Kundel’s current tabulated data, and the requirements established by the project’s Competent Person.
