Description
ADAMAR SAFE-T-STIK Lite LINK 120 Magnetic Load Control Safety Tool
The ADAMAR SAFE-T-STIK Lite LINK 120 is a lightweight, long-reach magnetic no-touch safety tool designed for guiding and positioning suspended steel loads. Its 120-inch overall length allows workers to push, pull, and maneuver steel objects while maintaining greater separation from the load, fall zone, pinch points, and crush hazards.
For excavation and underground utility contractors, the SAFE-T-STIK Lite LINK 120 is especially useful when handling steel road plates, trench boxes, pipes, and other heavy steel objects that require additional working distance.
The modular LINK design uses three sections that quickly connect together, providing long-reach capability while allowing the tool to be broken down into shorter sections for transportation and storage.
SAFE-T-STIK Lite LINK 120 Specifications
| Model | SAFE-T-STIK Lite LINK 120 |
|---|---|
| Part / SKU | STS006-120-LNK |
| Tool Type | Long-reach magnetic no-touch load control tool |
| Total Length | 120 in. / 10 ft. |
| Section Configuration | Two 48 in. sections and one 24 in. section |
| Connection System | Quick link-together coupling system |
| Magnetic Attraction Force | Over 270 lb |
| Grip Style | Straight grip |
| Construction | Lightweight non-conductive handle materials with precision CNC aluminum components |
| Manufacturer | ADAMAR Industries |
| Country of Manufacture | Made in USA |
Long-Reach No-Touch Suspended Load Control

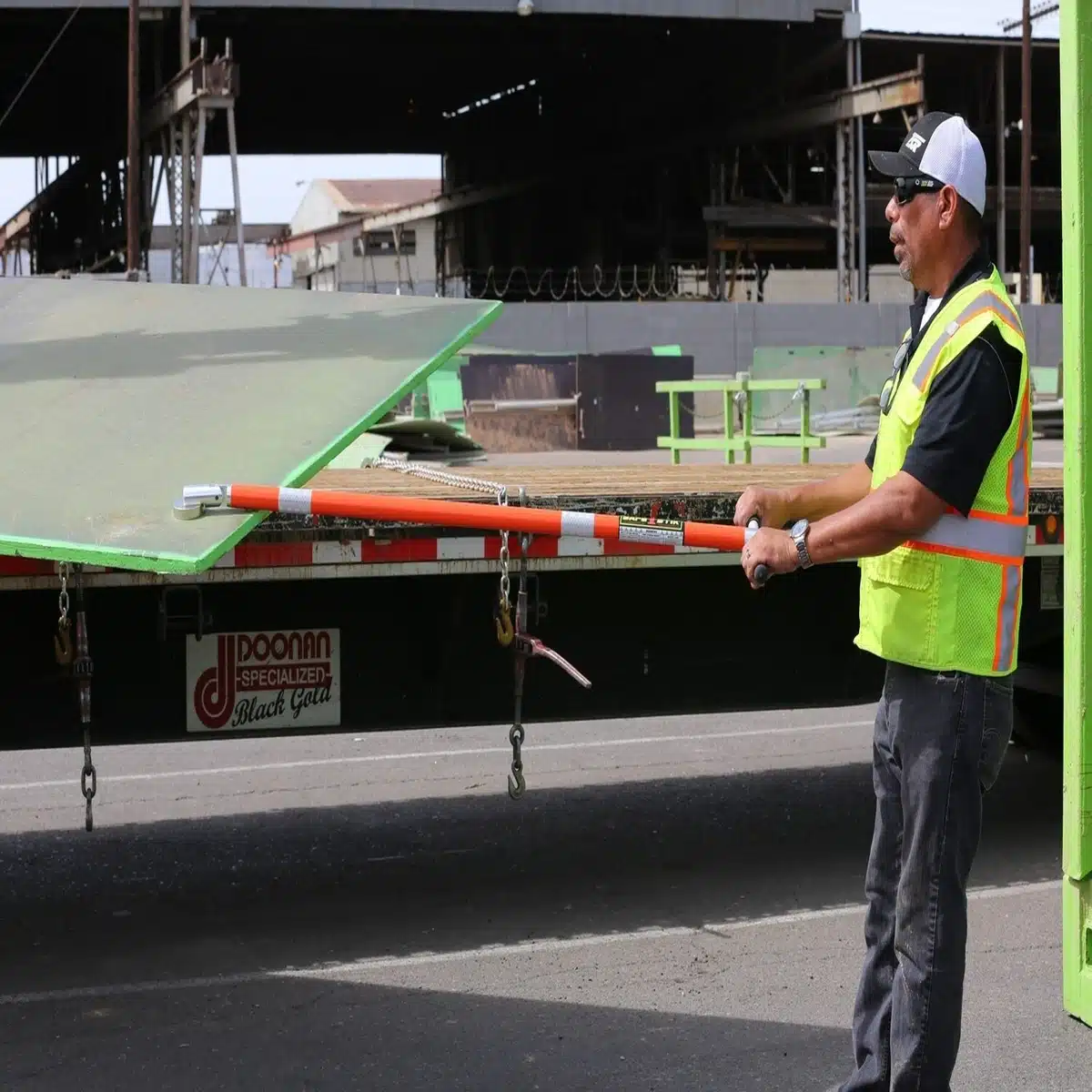

The SAFE-T-STIK Lite LINK 120 is designed for applications where workers need substantial reach while still maintaining rigid push-and-pull control of a suspended steel load. At 120 inches, or 10 feet, long, the tool allows the operator to remain farther from the load while guiding it into position.
The magnetic head attaches to an appropriate steel surface, providing a positive control point without requiring workers to place their hands or feet directly against the suspended object.
Common Applications
- Guiding steel road plates
- Positioning trench boxes
- Controlling suspended steel plate
- Handling large steel assemblies and components
- Guiding large motors and machinery
- General utility, excavation, construction, industrial, paving, and material-handling operations
120-Inch Modular LINK Design

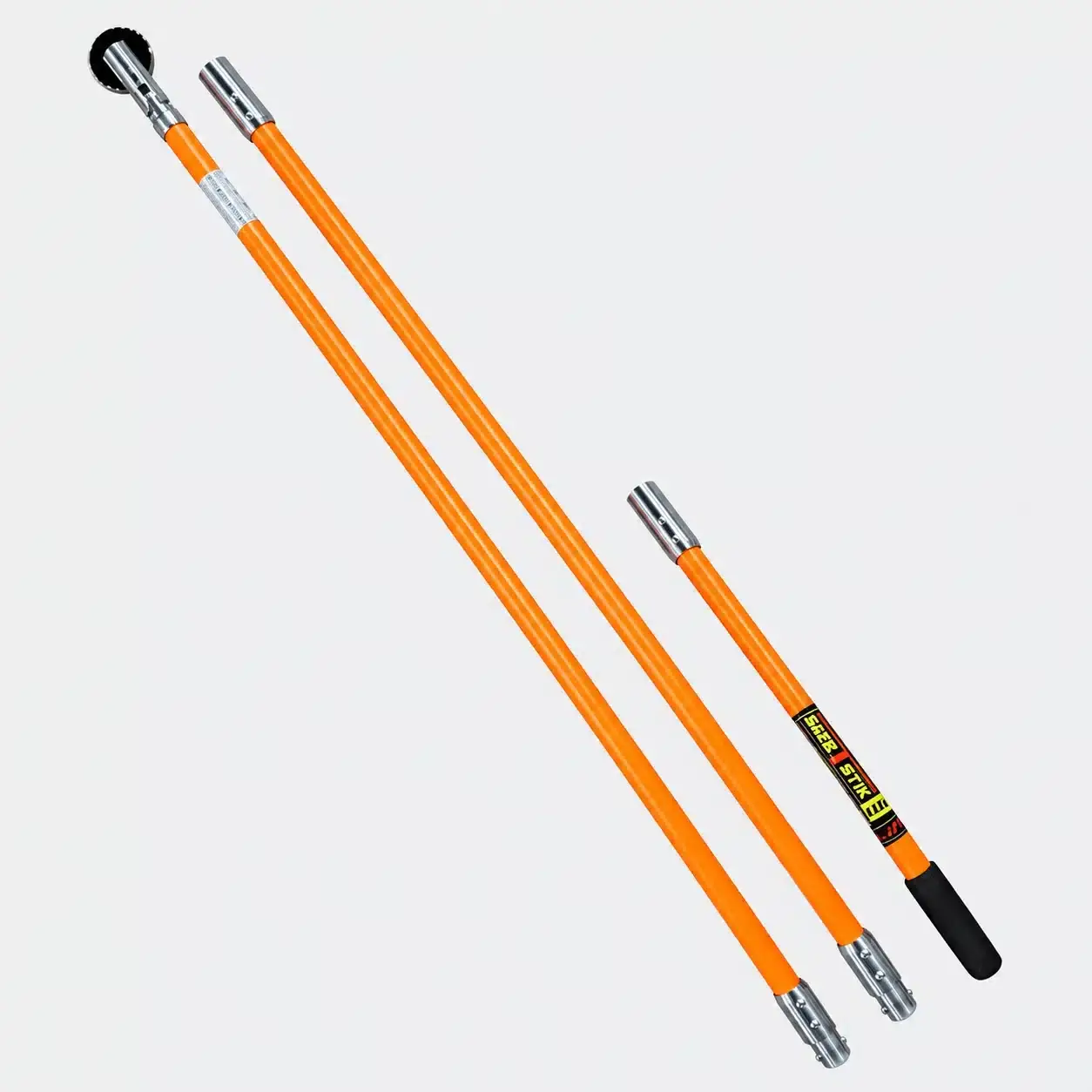

The SAFE-T-STIK Lite LINK 120 reaches a total length of 120 inches using two 48-inch sections and one 24-inch section. The link system uses quick-connect couplings that allow the sections to be joined quickly for use and separated for easier transportation and storage.
The modular design gives contractors the long reach needed for demanding load-control applications without requiring a single 10-foot tool to be transported or stored at full length.
Lightweight, Slim Design
The SAFE-T-STIK Lite LINK series is designed as a slimmer and lighter alternative to ADAMAR’s larger SAFE-T-STIK models. The Lite LINK does not use a T-handle or D-handle, instead using a straight-grip configuration that helps keep the tool lightweight and manageable at extended lengths.
The fiberglass-based handle incorporates a durable plastic overlay with molded non-slip grip patterns, allowing the operator to grip the tool at different locations with or without gloves. The overlay is designed to resist scratches, cuts, dings, and abrasion during demanding jobsite use.
Magnetic Load Control

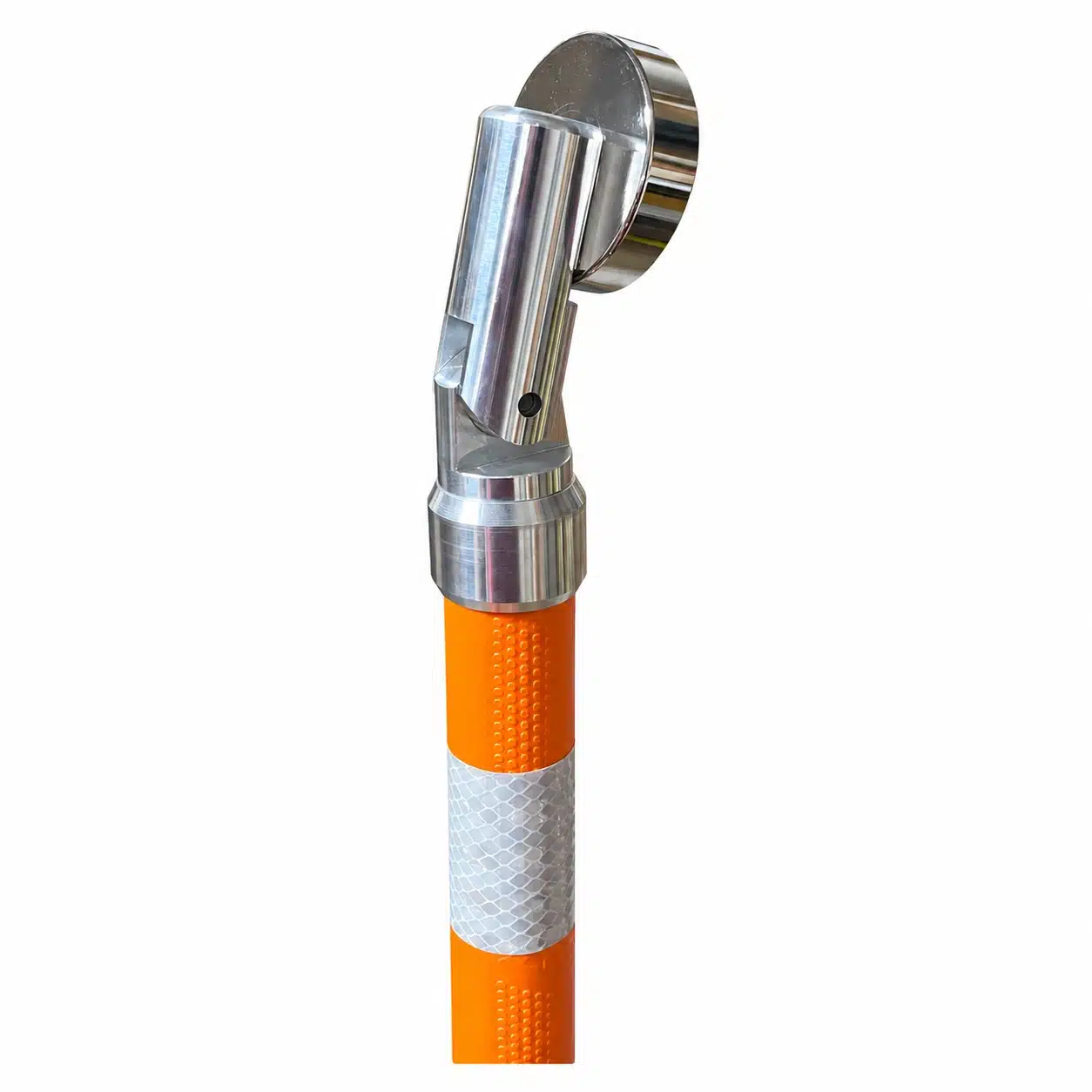

The SAFE-T-STIK Lite LINK provides over 270 lb of magnetic attraction force for attachment to suitable steel surfaces. Precision CNC aluminum components allow the magnetic head to move with the load while the operator maintains push-and-pull control.
The magnetic connection is designed for load guiding and positioning rather than lifting the steel object itself.
Other SAFE-T-STIK Lite LINK Sizes Available
We also offer SAFE-T-STIK Lite LINK models in other lengths for applications that do not require the full 120-inch reach. Current models include the Lite LINK 72 and Lite LINK 96, along with shorter fixed-length SAFE-T-STIK Lite tools. Contact Iron Lot for current availability and help selecting the appropriate SAFE-T-STIK model for your application.
