Description

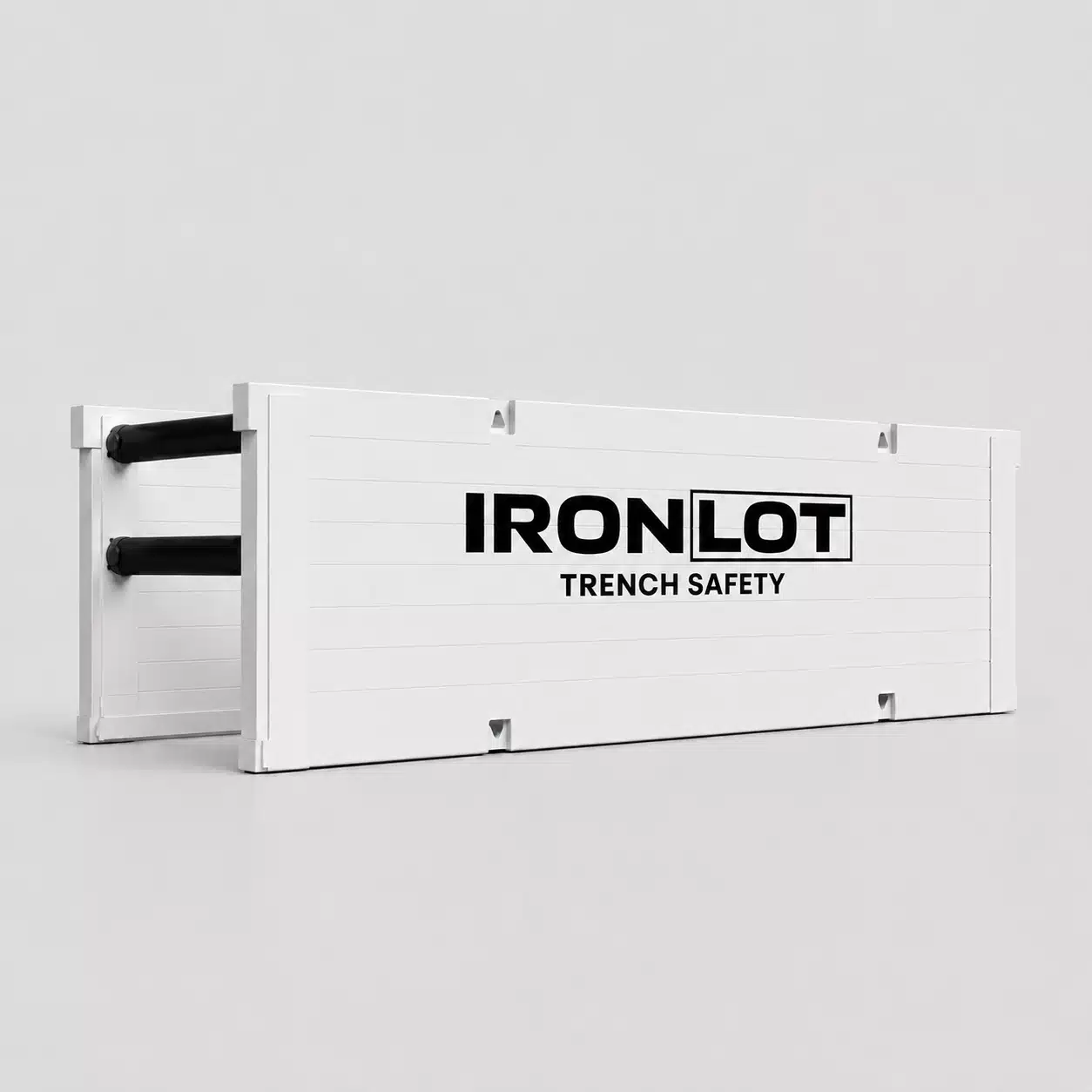

6′ x 16′ ESC TSB4 Steel Trench Box
The ESC TSB4-616 is a standard mainline trench shield built for underground utility, pipeline, municipal, and infrastructure projects. The 6-foot-tall configuration can be used as a standalone trench box or as an extension shield stacked on top of a compatible taller trench box using connecting stacking pins.
A 16-foot long trench box is typically used with pipe sections that are up to 12 feet long. As a general safety rule it is recommended that a trench shield be at least 4 feet longer than the pipe being installed.
Following this rule provides additional shield length beyond the pipe section and gives the crew more working room for installation and connection work inside the protected area.
Key Benefits & Crew Efficiency
- Ideal for 12-Foot Pipe: Meets the 4-foot safety headroom rule (shield should be 4 feet longer than the pipe joint) to safely accommodate your crew.
- Standalone or Stackable Configuration: Use the 6-foot box independently or as an extension shield stacked above a compatible taller trench box using connecting stacking pins.
- Maximized Internal Clearance: The TSB4-616 offers a generous 40-inch pipe clearance height and 13′11″ between spreaders.
- Capacity Safety: Built with a 1,402 PSF shield capacity for a C60 soil depth rating of 25′ and a C80 soil depth rating of 20′.
- 4-Inch-Wall Steel Construction: Weighing 5,738 lbs without spreaders, this configuration combines substantial mainline working room with the handling and stacking versatility of a 6-foot shield.
Product Specifications
| Model | TSB4-616 |
|---|---|
| Dimensions | 6′ High x 16′ Long |
| Wall Thickness | 4 Inches |
| Material | Steel |
| Weight | Approx. 5,738 lbs |
| Pipe Clearance | 40 Inches |
| Length Between Spreaders | 13′11″ |
| Shield Capacity | 2,738 PSF |
| Max Depth Rating – B45 | 33 ft |
| Max Depth Rating – C60 | 25 ft |
| Max Depth Rating – C80 | 20 ft |
Pricing & Logistics
Price: $13,760.00
Contact us to confirm current pricing, availability and shipping rates.
Freight & Delivery Coordination
Shipping rates are calculated based on equipment quantity, spreader configuration, stacking components, and your final jobsite or yard destination. Discounts may be available for multiple box orders or complete fleet packages.
Target Applications
Typical Applications:
The 6′ x 16′ TSB4 is well suited for underground construction and mainline excavation work, including:
- water and sewer mainline installation;
- storm drainage projects;
- pipeline construction;
- municipal infrastructure;
- public works excavation;
- roadway utility installation;
- standalone use where a 6-foot shield height is appropriate;
- stacked configurations requiring additional shield height above a taller base box.
The 16-foot length provides substantial room for pipe placement and connection work while maintaining a more compact footprint than a 20-foot trench box.
The 6-foot panel height also gives contractors flexibility when building or expanding a trench box fleet. It can serve as a standalone trench shield for suitable excavation conditions or be paired with a compatible taller box when a stacked configuration is needed.
Critical Selection & Safety Factors
Is the 6×16 TSB4 Right for Your Jobsite?
Trench box selection involves more than choosing a height and length.
The right box depends on excavation depth, trench width, pipe diameter, soil classification, surcharge conditions, groundwater, adjacent structures, excavator capacity, transportation requirements, and jobsite access.
The 6×16 TSB4 is worth considering when the project requires the working room of a mainline trench shield but does not require the additional length and weight of a 20-foot box. Its shorter footprint can make it easier to transport, position, and reposition on jobsites with limited working space.
It is also a practical fleet option for contractors who want the flexibility to use the box as an extension shield above a compatible 8-foot or 10-foot trench box.
When used as part of a stacked system, the box should be connected with the appropriate stacking pins and the complete configuration must be evaluated according to the applicable tabulated data and jobsite conditions.
For projects requiring more standalone shield height, an 8-foot or taller trench box may be a better fit. For longer pipe sections or projects requiring additional working length, a 6×20 TSB4 may be more appropriate.
We can help you compare available trench box sizes and configurations based on your project requirements, equipment, transportation needs, and preferred working dimensions.
Depth Ratings & Tabulated Data
The listed depth ratings must be evaluated together with the applicable tabulated data and actual jobsite conditions.
The Competent Person on-site holds ultimate responsibility for monitoring soil classifications (A, B, or C), accounting for adjacent structures, managing groundwater, and calculating surcharge loads such as spoil piles or heavy machinery parked near the edge of the trench.
For stacked trench box configurations, the complete system arrangement, box compatibility, stacking connections, and applicable tabulated data must also be considered.
For help comparing available trench box options, contact our team with your project details and equipment requirements.
Spreader Configurations
The correct spreader configuration depends on the required trench width, pipe or structure dimensions, installation method, and the amount of working clearance needed inside the trench box.
When requesting a quote, send us the project information needed to evaluate available configuration options, including:
- excavation depth;
- soil classification;
- required trench width;
- pipe or structure dimensions;
- standalone or stacked use;
- project location;
- quantity of trench boxes required.
We can help with spreader options, stacking pins and configuration requirements, current availability, equipment quotes, and freight and delivery coordination.
